Exploring the CMDB

The Configuration Management Database (CMDB) is the central repository for all discovered infrastructure in NopeSight. This guide walks you through exploring configuration items (CIs), using filters, and viewing detailed information about your assets.

Accessing the CI List​

  1. From the left sidebar, click on CMDB
  2. Select CI List from the expanded menu

You will see the main Configuration Items page displaying all discovered assets in your environment.

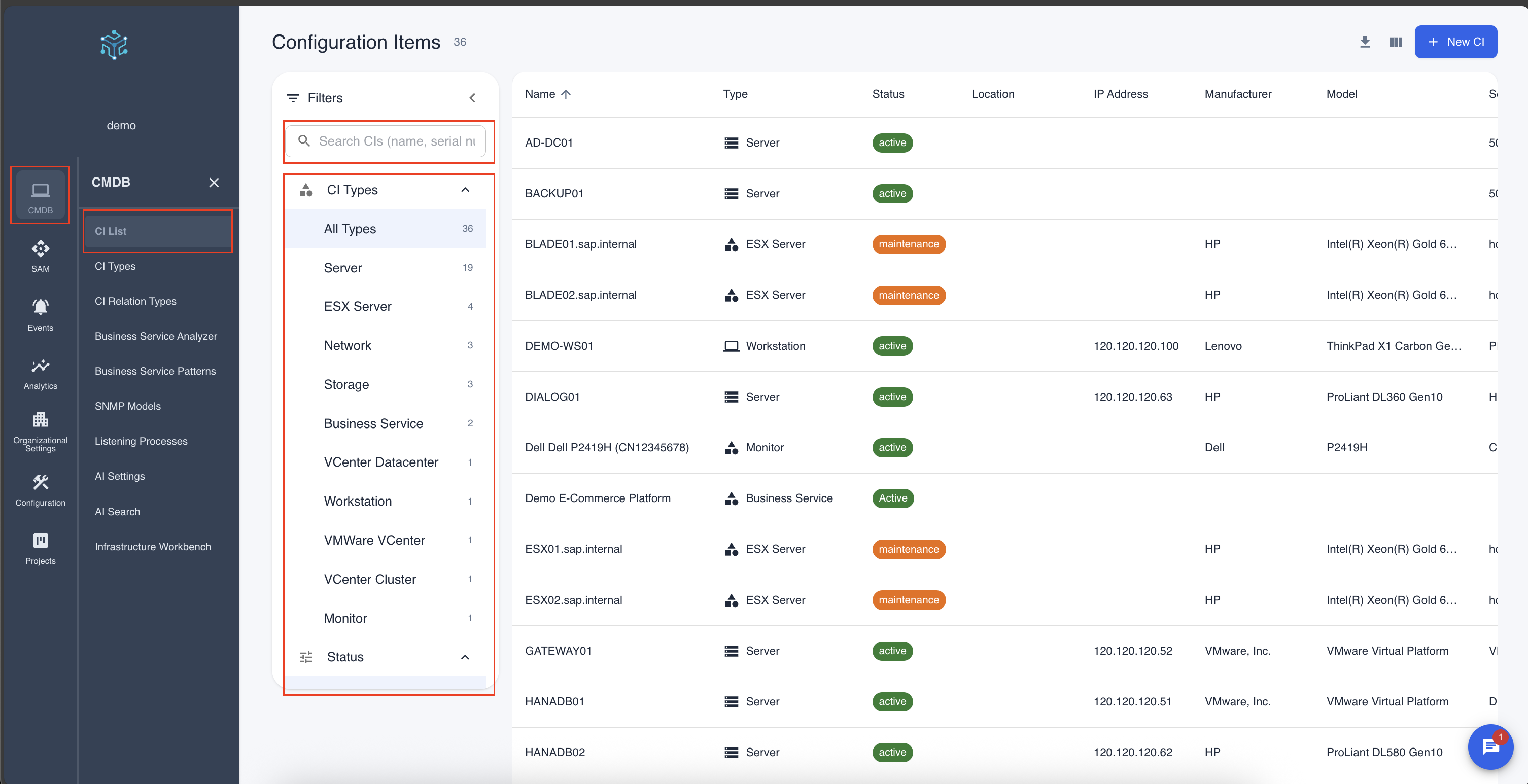

CI List Homepage

Understanding the Interface​

The CI List interface consists of three main areas:

Header Section​

  • Configuration Items title with the total count of CIs
  • Export to CSV button - download the current filtered list
  • Column Customization button - show/hide and reorder columns
  • + New CI button - manually create a new configuration item

Filter Sidebar (Left Panel)​

The filter sidebar provides powerful filtering capabilities to narrow down your CI list.

CI Table (Main Area)​

Displays all configuration items matching your current filters with sortable columns.

Using Filters​

The filter sidebar on the left allows you to quickly find specific configuration items.

Filter Sidebar

Available Filters​

  • Free-text search across CI name, serial number, IP address, and other fields
  • Results update automatically as you type

CI Types​

Filter by the type of configuration item:

  • All Types - Show all CIs
  • Server - Physical and virtual servers
  • ESX Server - VMware ESX hosts
  • Network - Network devices (routers, switches)
  • Storage - Storage arrays and devices
  • Business Service - Logical business services
  • VCenter Datacenter - VMware datacenters
  • Workstation - End-user devices (laptops, desktops)
  • VMWare VCenter - VMware vCenter servers
  • VCenter Cluster - VMware clusters
  • Monitor - Display monitors

Each type shows a count of matching items.

Status​

Filter by operational status:

  • All Statuses - Show all
  • Active (green) - Currently operational
  • Inactive (red) - Not in use
  • Maintenance (orange) - Under maintenance

External Source​

Filter by integration status:

  • All - Show all CIs
  • Linked to Xurrent - CIs synced with external ITSM
  • Not Linked - CIs not linked to external systems

Manufacturer​

Filter by hardware manufacturer (e.g., HP, Dell Inc., Lenovo, VMware)

Table Features​

Sorting​

Click on any column header to sort the table by that column. Click again to reverse the sort order.

Pagination​

Use the pagination controls at the bottom of the table to:

  • Navigate between pages
  • Change rows per page (10, 25, 50, 100)

Column Customization​

Click the column icon in the header to:

  • Show or hide specific columns
  • Reorder columns by dragging
  • Reset to default layout

Quick Actions​

Hover over any row to reveal action buttons:

  • View - Open CI details
  • Edit - Modify CI properties
  • Delete - Remove CI from CMDB

Next Steps​

Explore specific CI types in detail:
