Viewing CI Details

After locating a Configuration Item (CI) in the CI List, clicking on it will navigate you to the CI Details view. This page provides a comprehensive, 360-degree view of the asset, consolidating all known data, from general attributes to discovered relationships and audit history.

The CI Header​

The header provides an at-a-glance summary of the CI's identity and state.

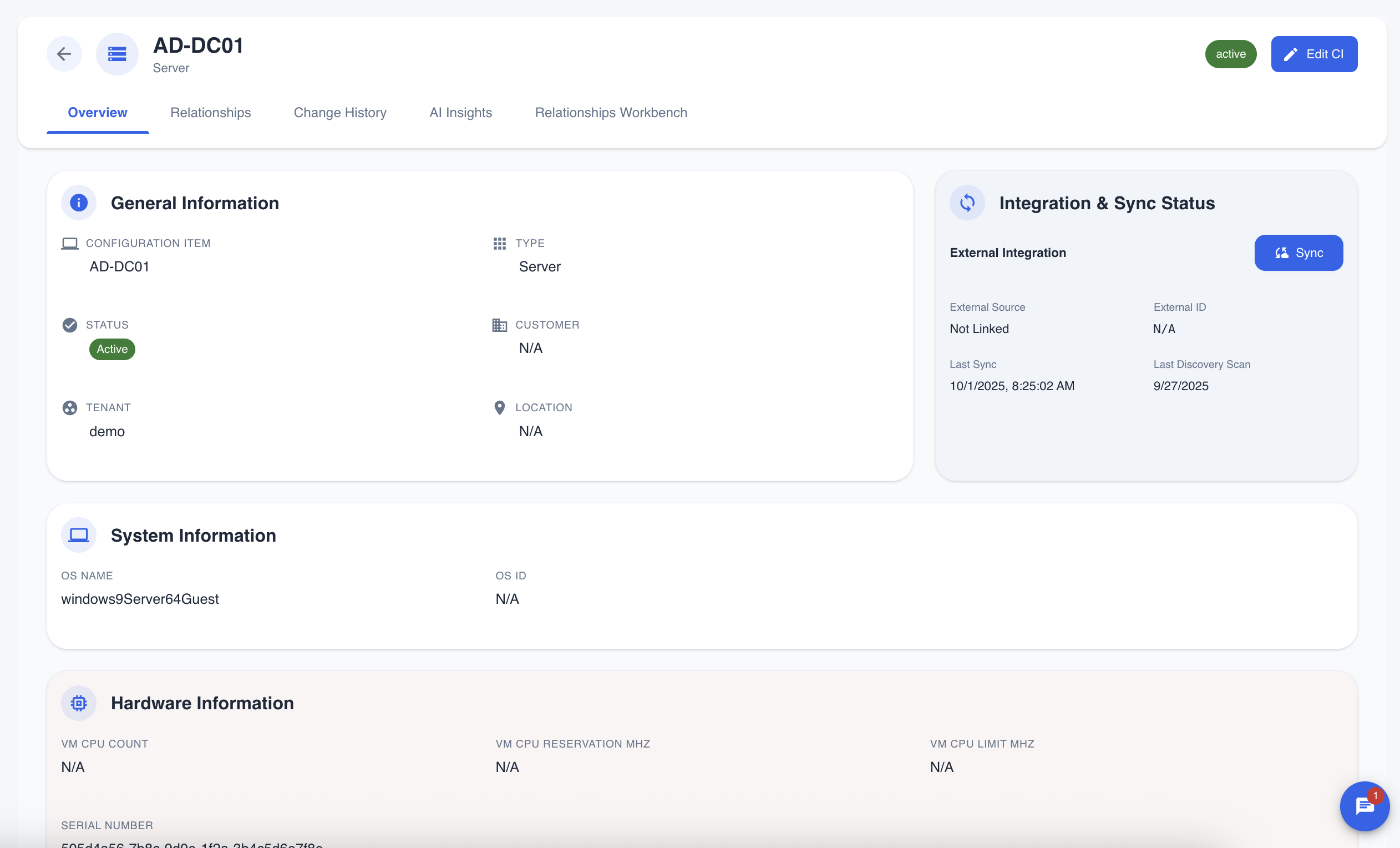

CI Details Header

  • CI Name and Type: The primary name and type of the CI are displayed prominently.
  • Status: A chip indicates the current operational status (e.g., Active, Inactive, Maintenance).
  • Edit CI: This button allows you to manually edit the attributes of the Configuration Item.

The Overview Tab​

The default "Overview" tab contains the most critical information about the CI, organized into several cards.

Information Cards​

Key details are grouped into categories for clarity.

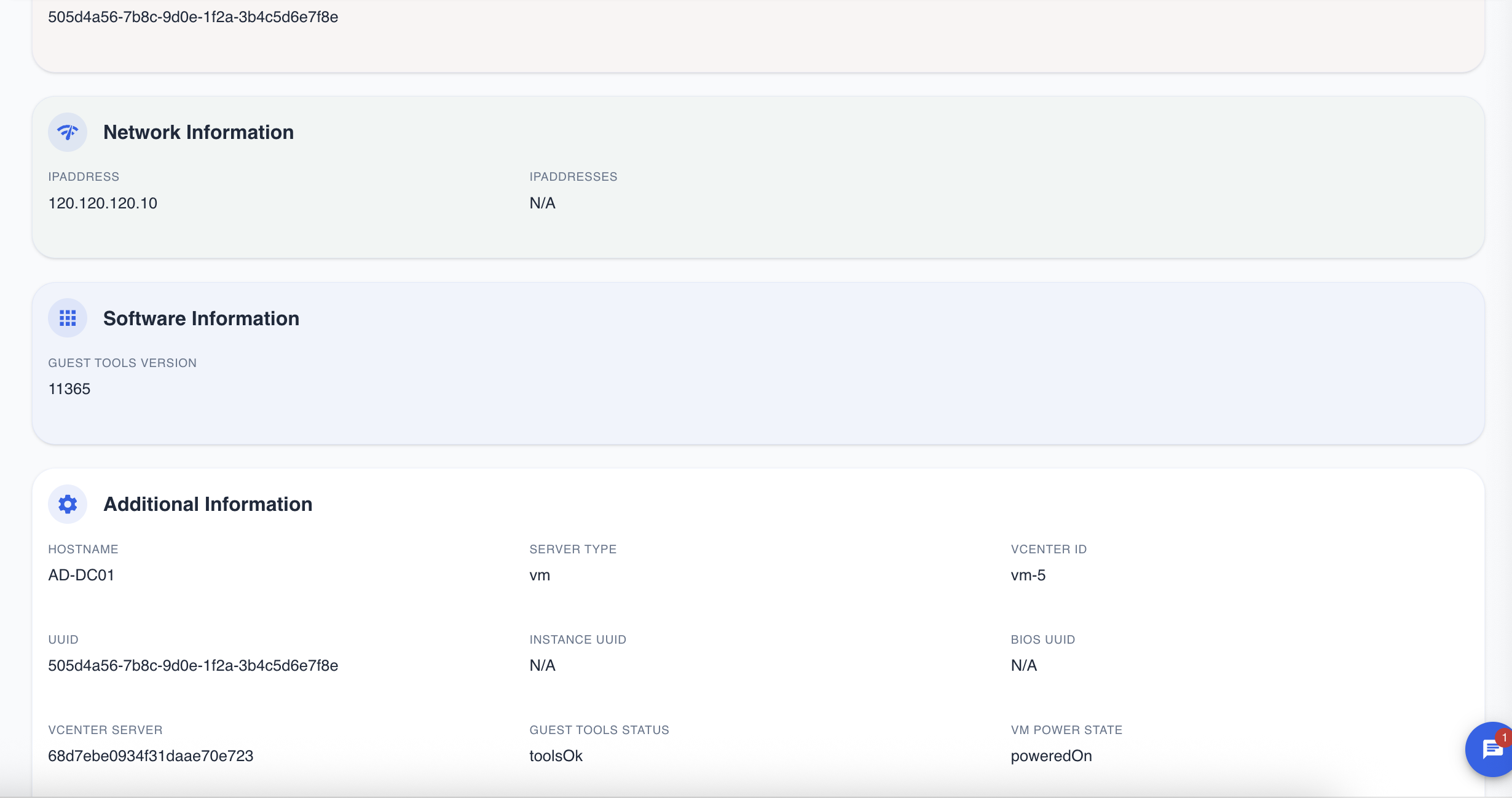

CI Information Cards

  • General Information: Includes fundamental attributes like the CI's name, type, status, location, and its parent CI if it's part of a larger system.
  • Integration & Sync Status: Shows data related to external integrations and discovery. You can see the last scan date and manually trigger a sync if an integration is configured.
  • System, Hardware, and Network Information: These cards display detailed data collected by the discovery scanner, such as OS version, CPU, memory, IP addresses, and MAC addresses.

CI Collections​

Further down the Overview tab, you'll find tables listing related items and deep-discovery data associated with the CI.

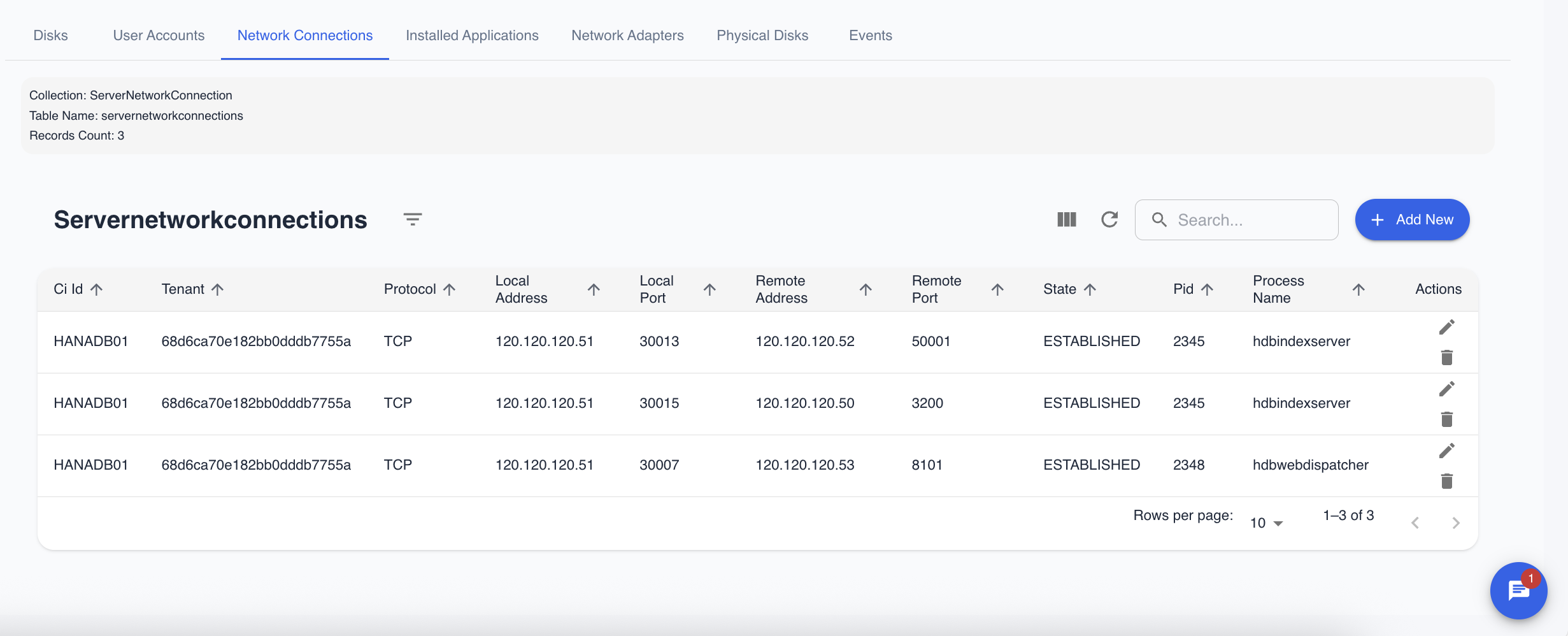

CI Collections

This is where you can find detailed lists of:

  • Installed Software
  • Running Processes
  • Network Adapters
  • File Systems
  • And other collected data points.

Other Tabs​

Several other tabs are available to provide deeper insights into the CI:

  • Relationships: A graphical visualization showing how this CI is connected to other CIs in the CMDB, such as applications, servers, and network devices.
  • Change History: An audit log that displays a complete history of all changes made to the CI, including what was changed, who changed it, and when.
  • AI Insights: This tab provides analysis and recommendations generated by the NopeSight AI engine, which can help identify potential issues, misconfigurations, or optimization opportunities.
